Overview
The My-Giga 1m³ is a professional-grade large-format 3D printer designed for industrial and professional applications demanding
high precision, reliability, and versatility in creating large-scale components.
Key Features

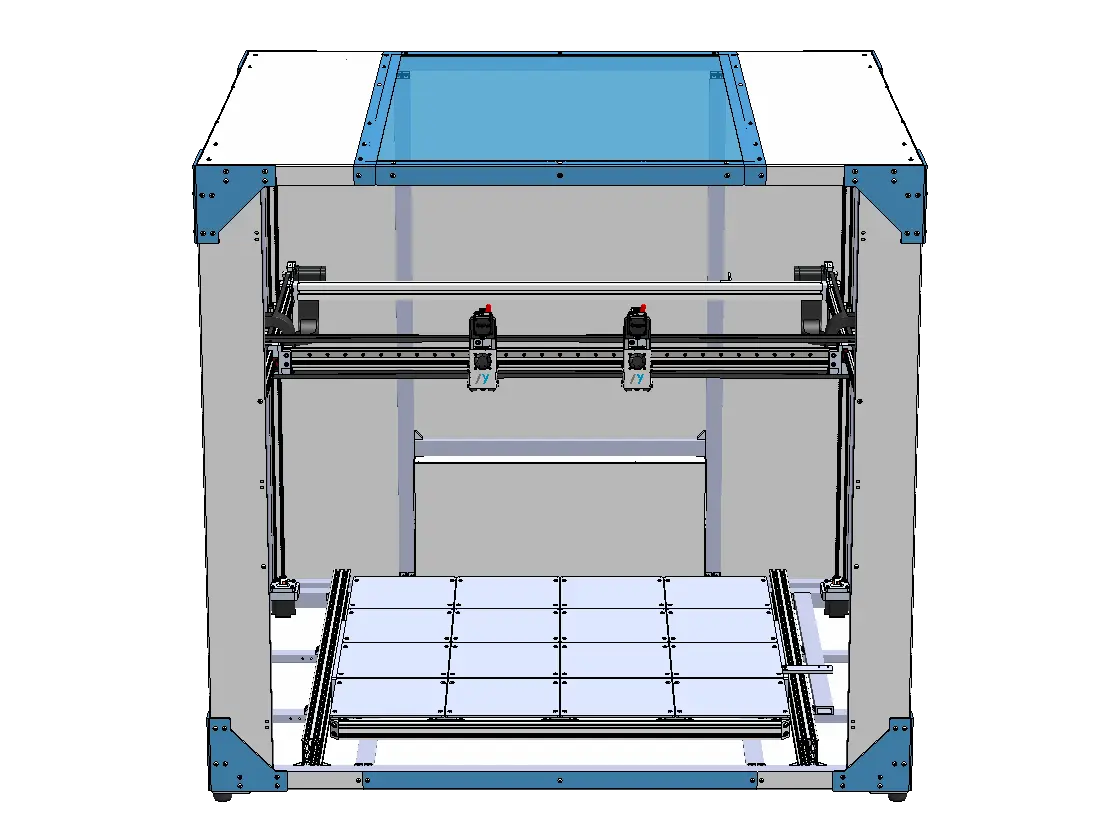

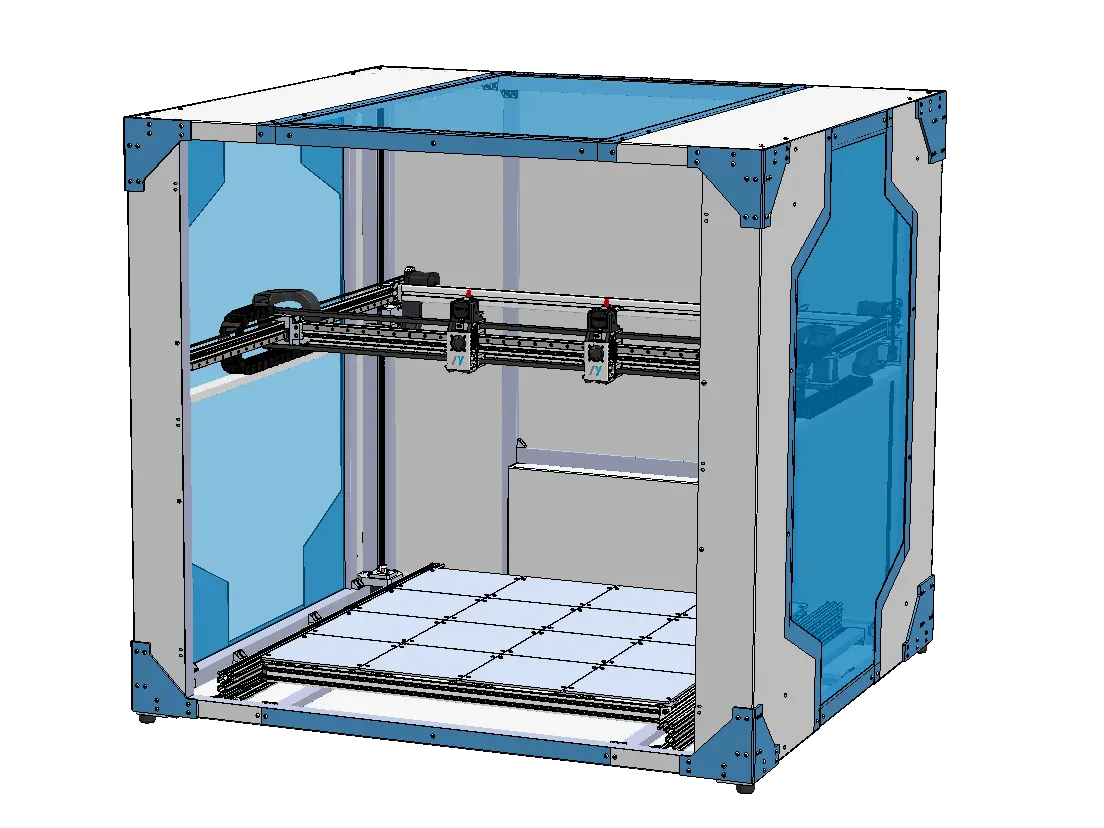

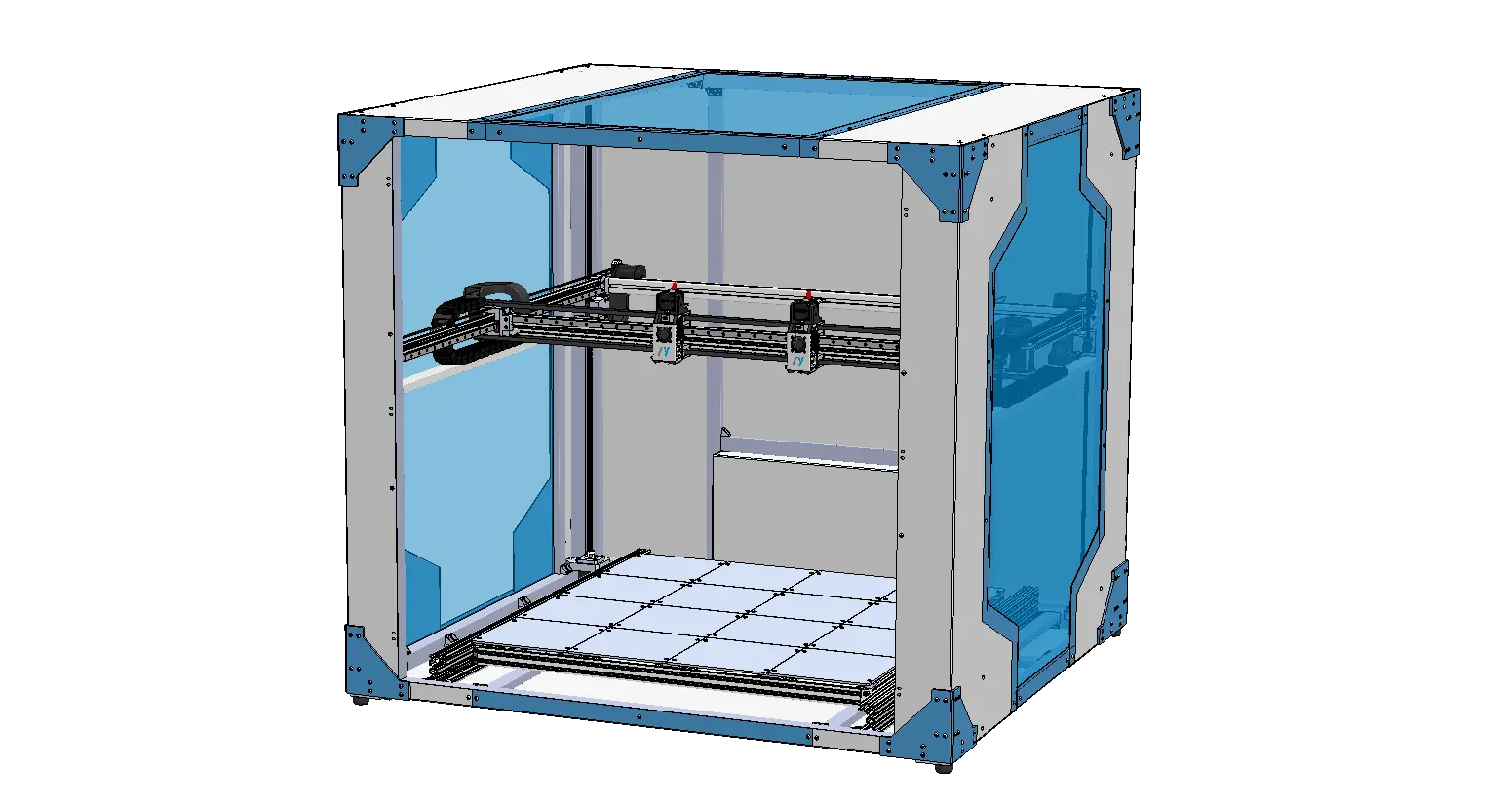

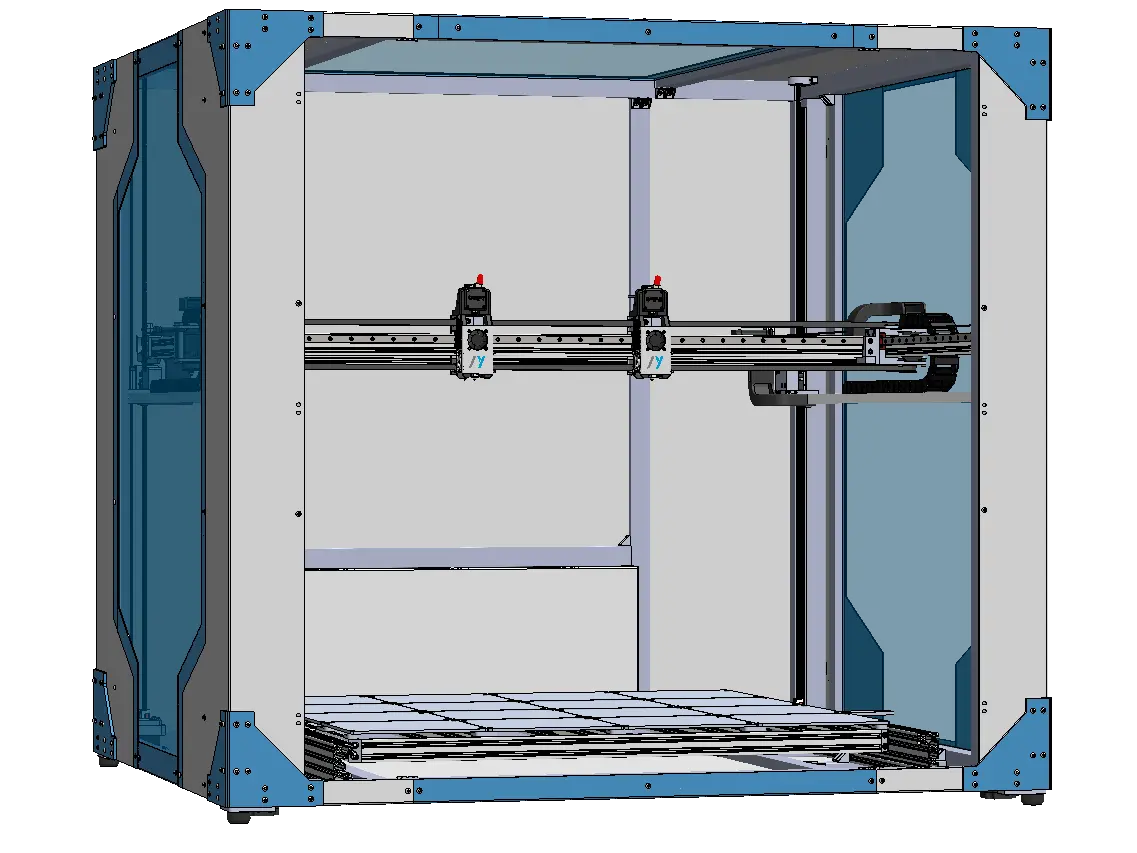

With a massive build volume of 1000 x 1000 x 1000 mm, the My-Giga 1m³ easily handles the production of large-scale items in a single printing operation,
eliminating the need for complex assembly.

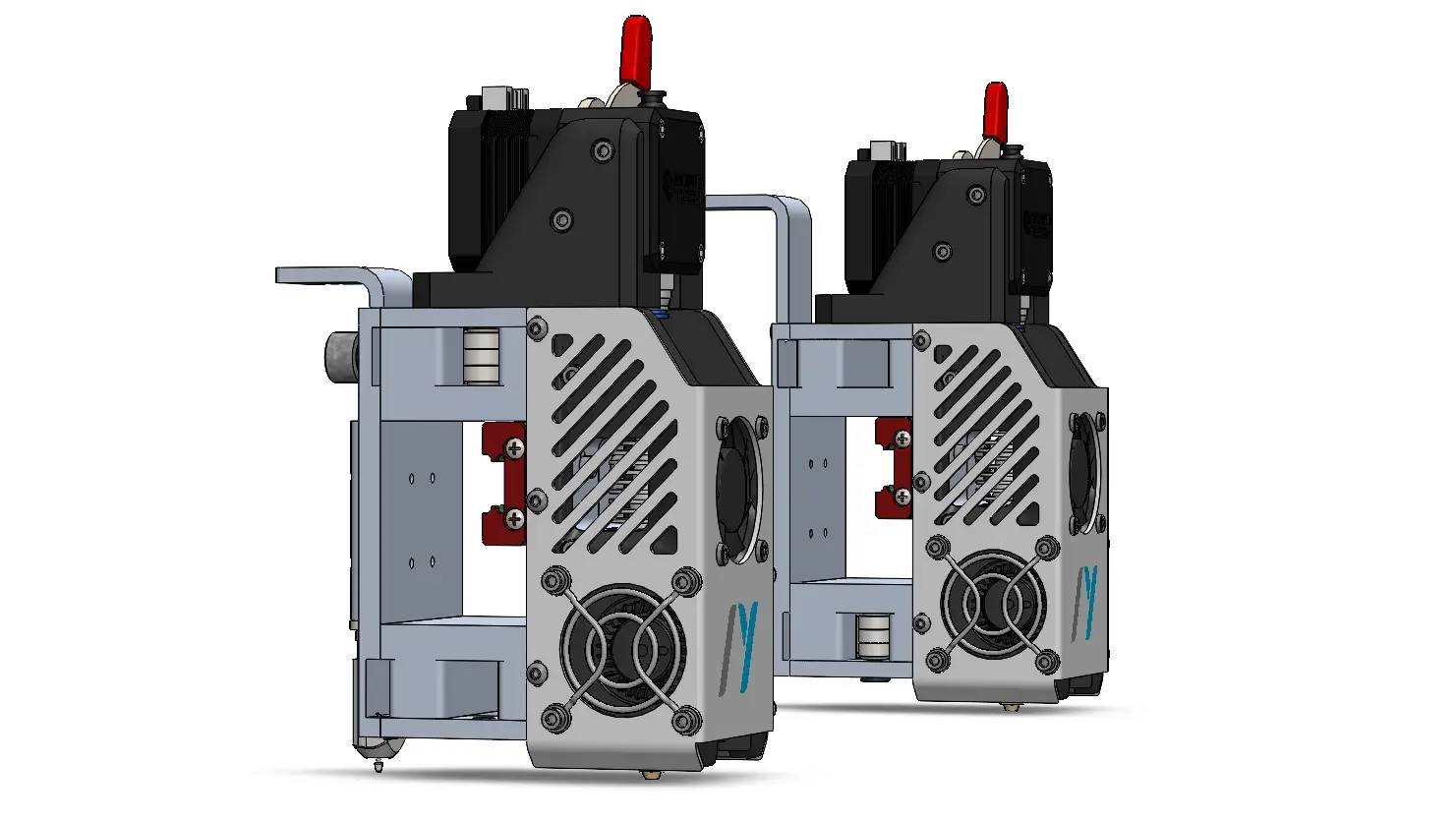

IDEX System – Independent Dual Extruders
Equipped with an Independent Dual Extruder (IDEX) system, the My-Giga1m³ allows you to operate two extruders independently for greater flexibility and productivity:
- Singular Mode: Standard single-extruder printing.
- Dual Color Mode: Print with two different colors or materials
- simultaneously.
- Copy Mode: Double your productivity by printing two identical items
- simultaneously.
- Mirror Mode: Print mirrored parts simultaneously, ideal for
- symmetrical components.
- Support with Different Materials: Utilize soluble or break-away
- supports for easy removal and cleaner finishes.
- Sequential Mode: Efficiently print multiple parts sequentially.
E3D Super Volcano Extruder
The printer is equipped with the renowned E3D Super Volcano extruder, delivering significantly increased flow rates and enabling faster printing speeds without sacrificing print quality, making it ideal for large-scale manufacturing.

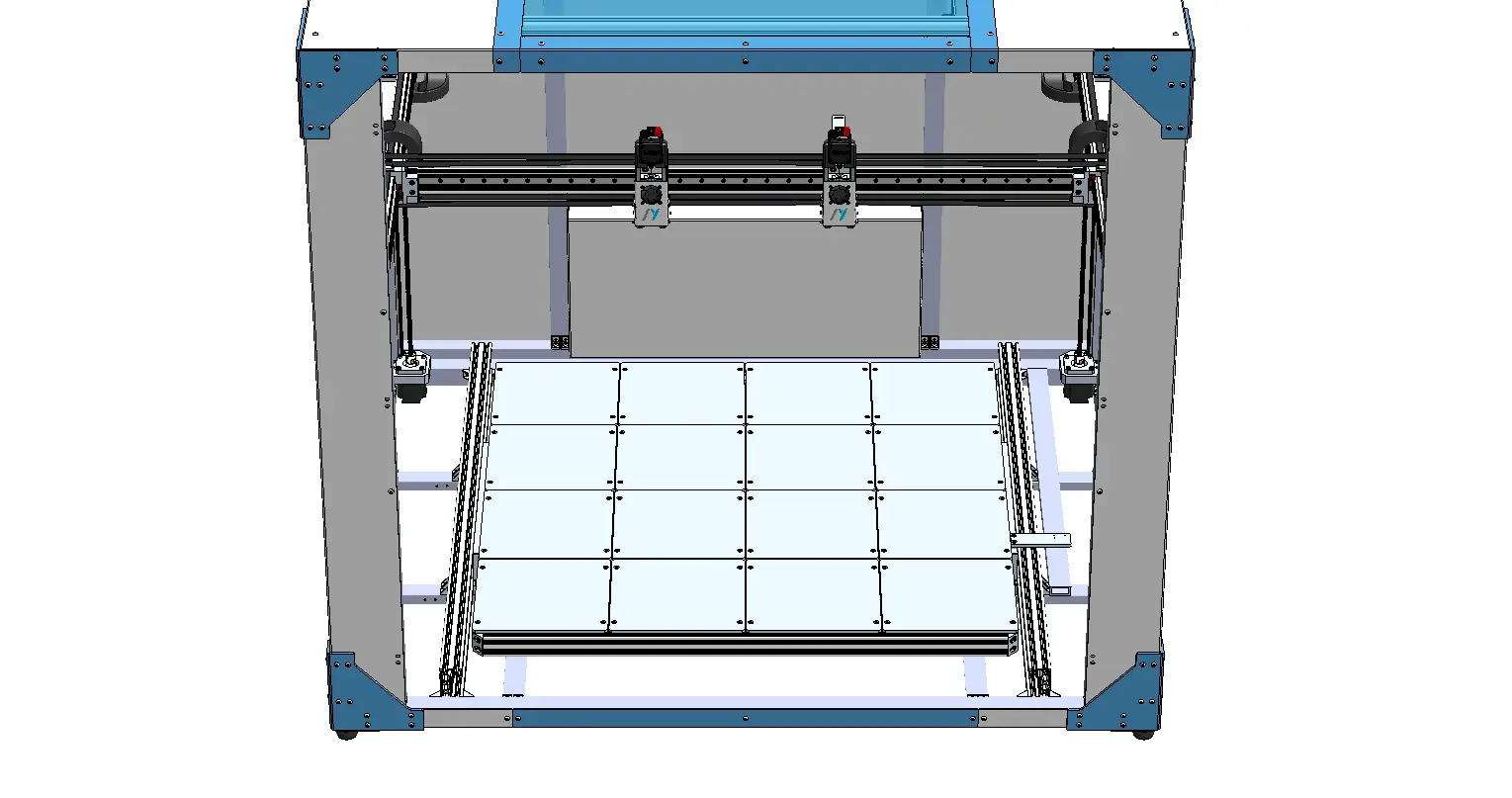

Segmented Heated Bed
The heated build platform is divided into 16 independently controlled
segments, providing precise thermal control to ensure optimal adhesion.
Advanced Firmware and Electronics
Powered by the robust RepRap Firmware and the Duet 2 WiFi controller board, the My-Giga 1m³ offers an intuitive web-based interface for remote monitoring, management, and customization of printing tasks.
Diverse Applications
Design and Architecture
We provide tailored digital strategies and solutions that align with your specific goals, driving innovation and efficiency in your online presence.
Mold and Tool Manufacturing
Streamline your industrial processes by creating customized molds and tooling, significantly reducing both production costs and lead times.
Education and Research
An excellent resource for educational and research institutions, facilitating experimentation and development of large-scale academic projects.
Rapid Prototyping
Produce full-scale functional prototypes quickly, accelerating product development and innovation cycles.

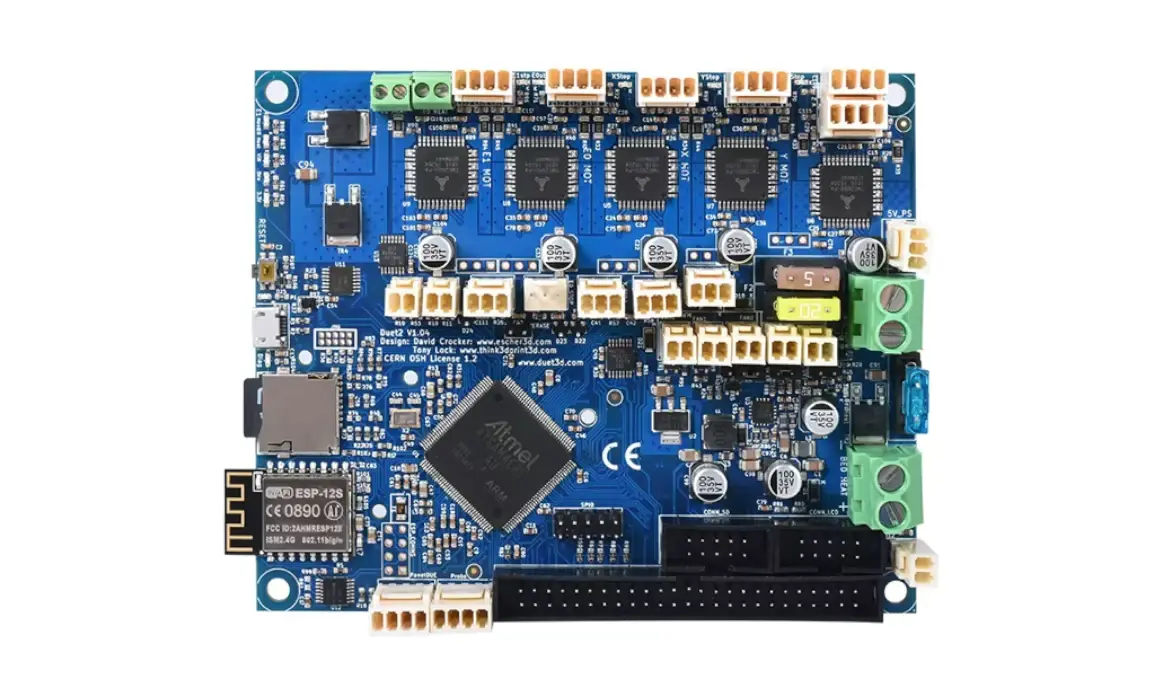

Controller Board
Duet controllers are highly regarded in the 3D printing community for their reliability, advanced features, and ease of use. Featuring integrated WiFi connectivity, intuitive web interfaces, and support for RepRap Firmware, Duet controllers ensure precision control, straightforward maintenance, and versatile customization capabilities, enhancing the performance and user experience of the My-Giga 1m³.
The integration of this board in the My-Mini enhances print accuracy, connectivity, and overall performance, making it one of the most reliable open-source 3D printers available.
Key Features of Duet Controllers:
- Powerful Processors: Duet controllers, specifically the Duet 2 WiFi driving the My-Giga1M3, are equipped with 32-bit ARM Cortex-M4 microcontrollers running at 120MHz, ensuring swift, reliable, and precise control over complex large-format printing tasks.

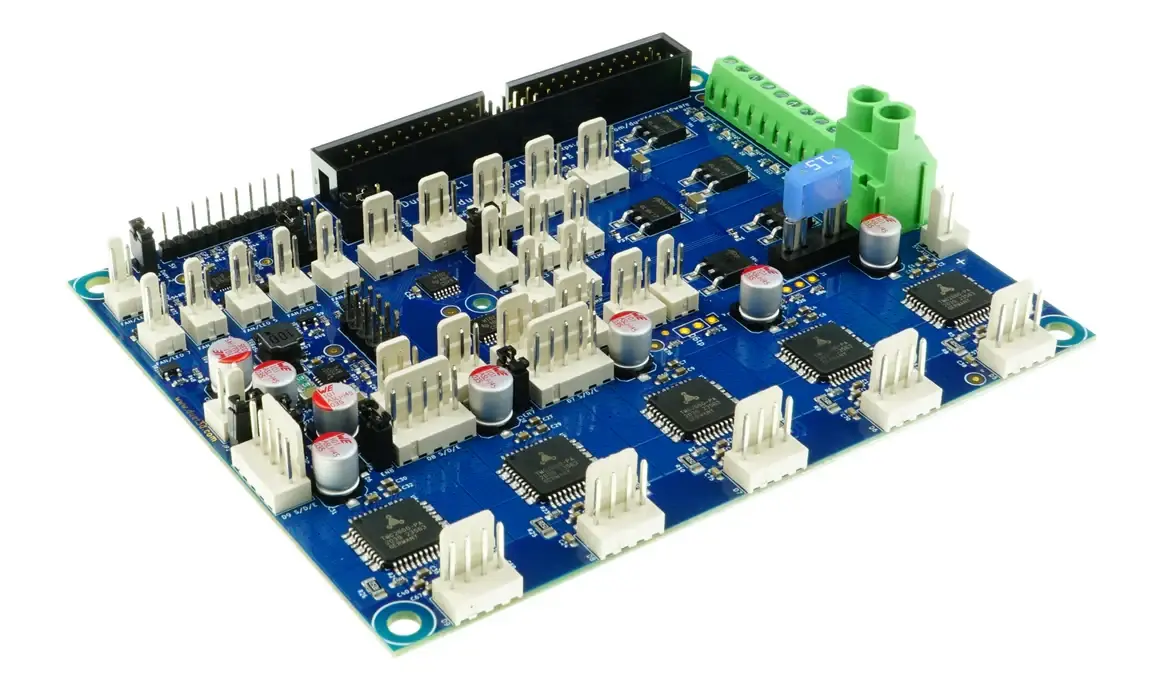

- High-Capability Stepper Drivers & Modular Expansion: Combining the Duet 2 WiFi with the Duex5 Expansion Board provides a total of 10 high-performance TMC2660 stepper drivers, each capable of delivering up to 2.4A RMS per phase. This 10-channel setup allows complete control over heavy-duty stepper motors, multi-extruder systems, and independent z-axis setups required for large-scale digital fabrication.
- Seamless WiFi Connectivity & Dedicated Web Control: The Duet 2 WiFi offers native high-speed WiFi networking featuring a built-in dedicated Web Interface (RepRapFirmware). This allows you to wirelessly control, monitor, update firmware, and manage the My-Giga1M3 directly from any web browser on your PC, tablet, or phone without relying on external displays.
Technical Specifications
- Build Volume: 1000 x 1000 x 1000 mm
- Nozzle Diameters: 0.6 mm, 0.8mm, 1.0 mm, 1.2 mm
- Maximum Extruder Temperature: 300°C
- Maximum Heated Bed Temperature: 120°C
- Compatible Materials: PLA, PETG, ABS, ASA, Nylon, composites, and
- Advanced technical filaments
