Complete CAD Project — My Cloner (3D CAD Files)

https://my-machines.com/web/image/product.template/477/image_1920?unique=8575f5c
Download the master 3D model and original technical drawings of the My Cloner. Build, study, or modify the machine in your own workshop and directly support open-source hardware development at My Machines!

20.32 € 20.32 EUR 20.32 €

Not Available For Sale

Esta combinação não existe.

This content will be shared across all product pages.

Contacte-nos

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Partilhar

Bring the Engineering of My Cloner to Your Workshop


The My Cloner was designed from scratch to bridge the gap between DIY machines and industrial robustness. If you want to study its mechanics deeply, 3D print your own parts, or modify the design to fit your exact needs, this official package gives you full access to the project's core files.


By purchasing this project, you aren't just buying files; you are directly funding the purchase of materials, prototype testing, and the development of new open-source hardware at My Machines.

What's Included in the Download (.ZIP)?

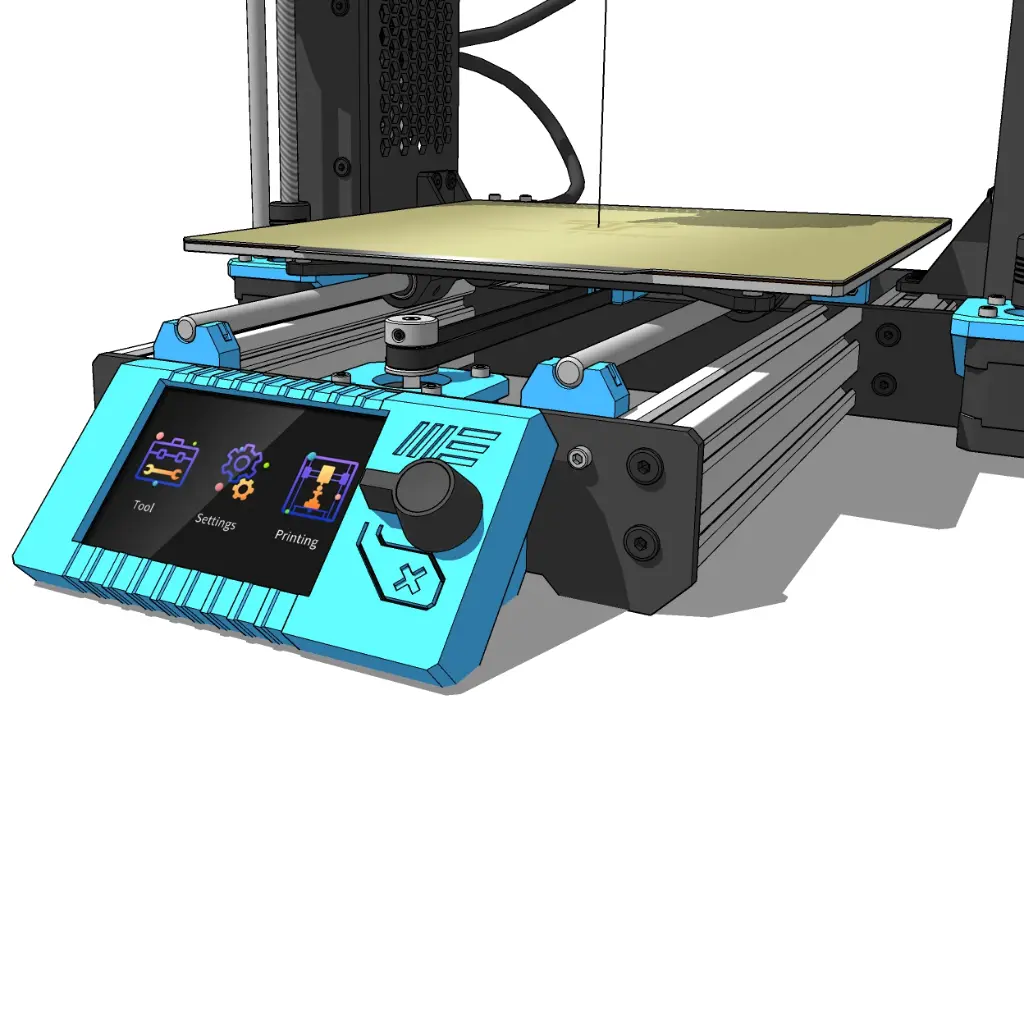

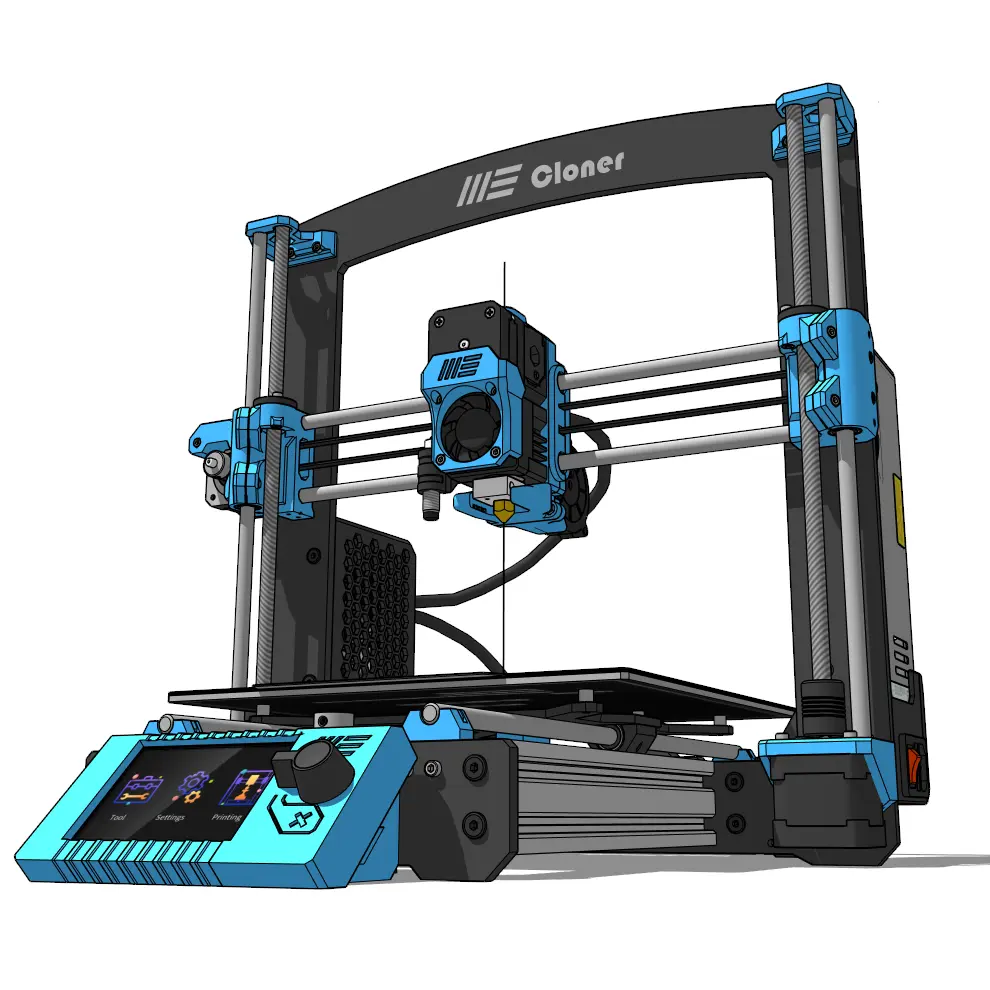

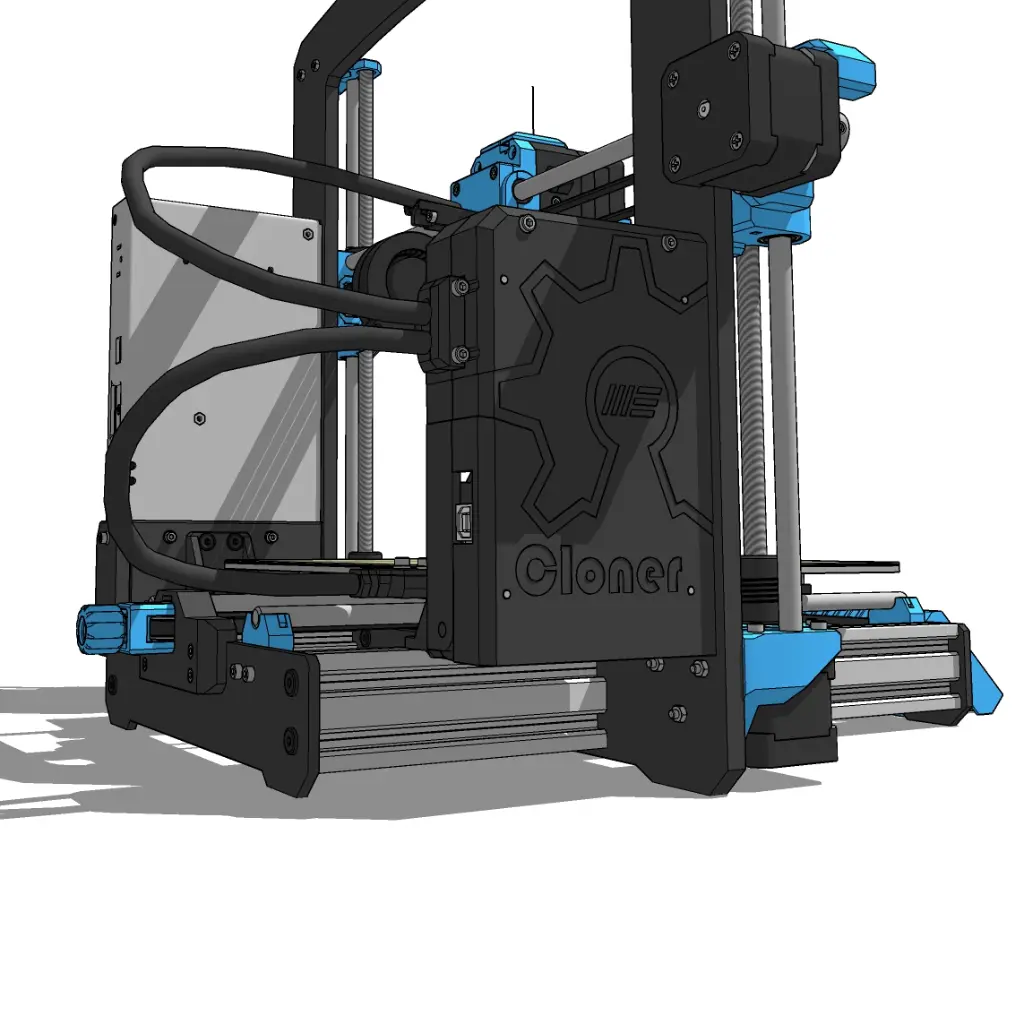

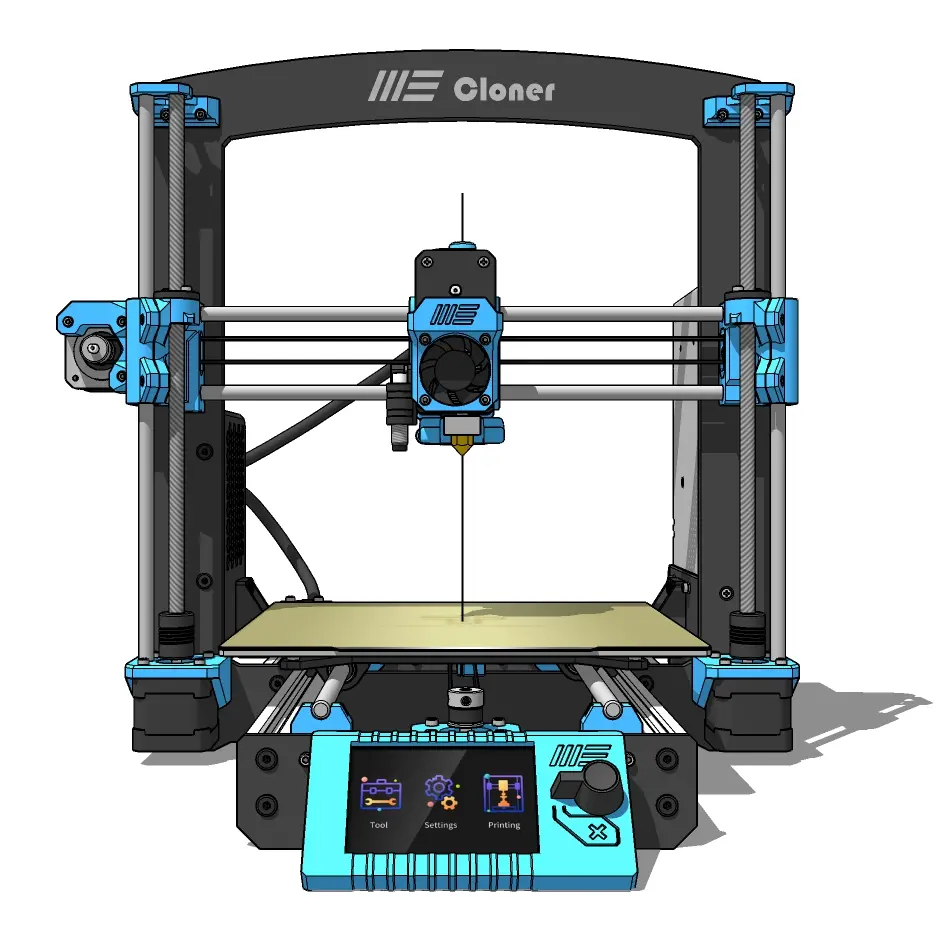

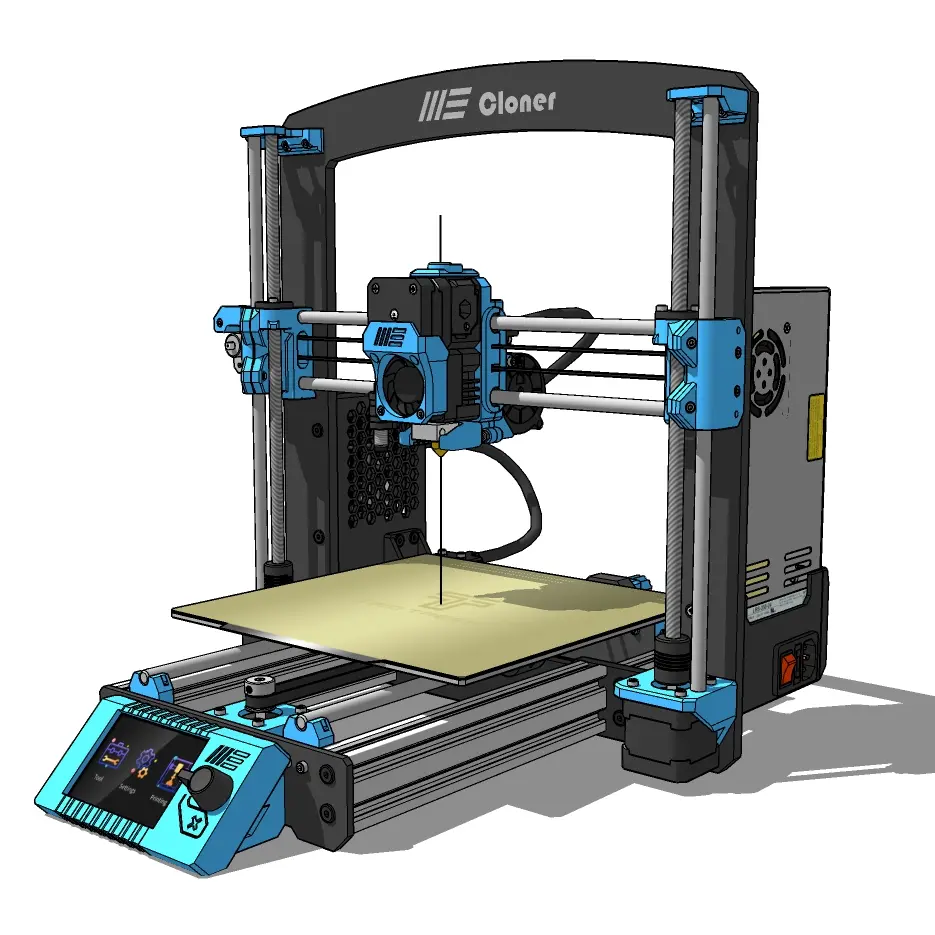

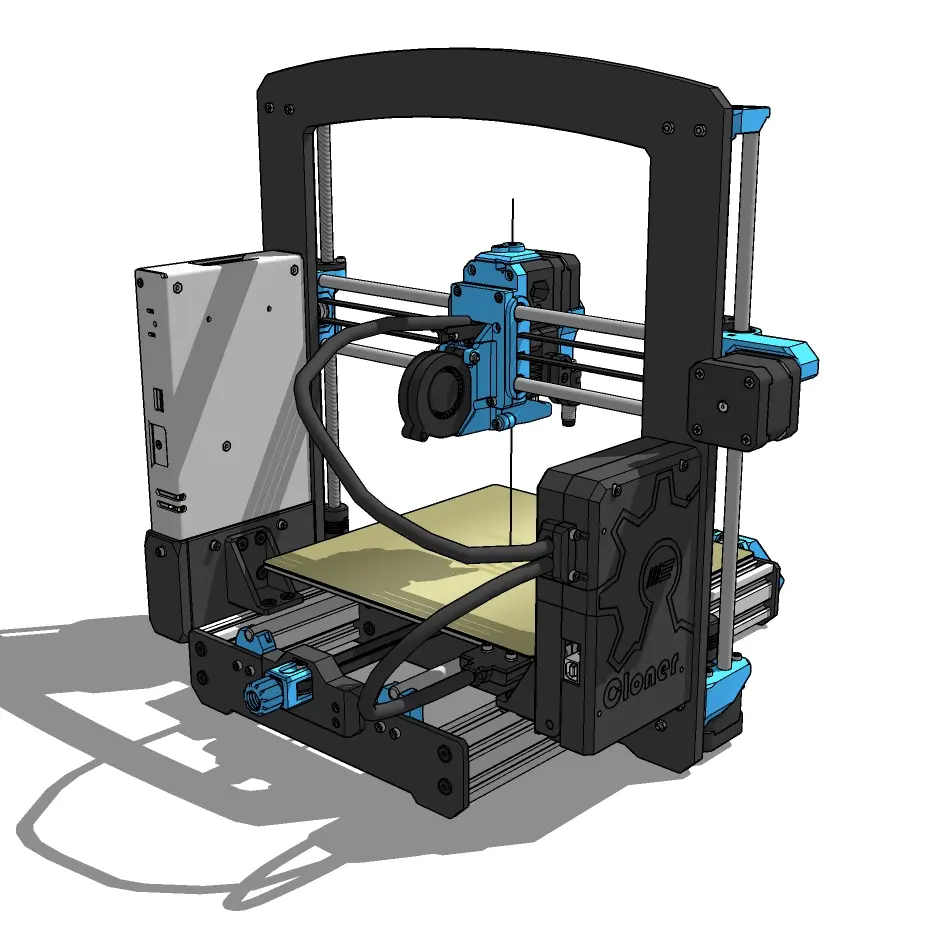

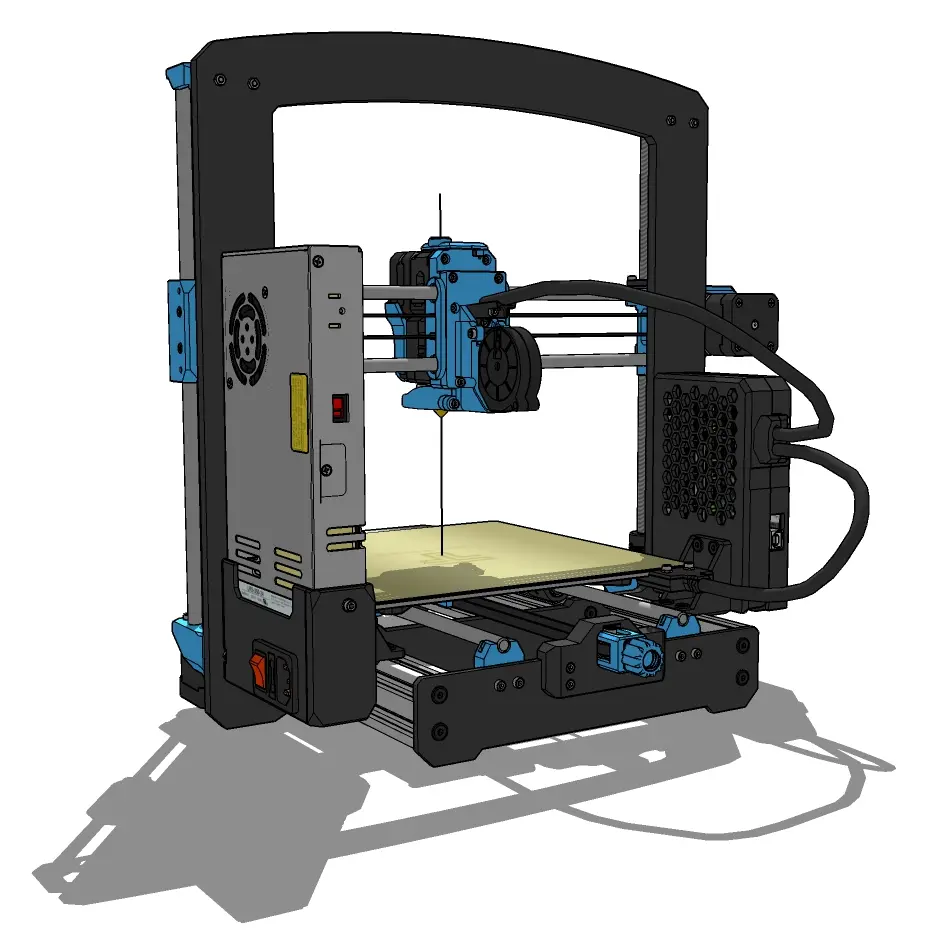

• Master 3D Model (.SKP): Complete Sketchup 3D model, fully organized into groups and components for easy inspection of the structure, fasteners, and mechanical layout.

• Individual 3D Printing Files (.STL): Every print-ready component separated individually, optimized and ready to import into your slicer of choice.


Official Project Documentation

You can access the full technical documentation, parts list, and build logs here:

• Click here to view the Bill of Materials (BOM)

• Click here to access the Assembly Manual & Setup Guide

• Click here to Learn more about the My Cloner Machine

Technical Specifications


• Structure: Heavy-duty aluminum structural profiles combined with high-rigidity plates.

• Motion & Control: Rigidity-focused layout designed for high-performance motion coordination and fully compatible with Klipper firmware.

• Philosophy: Otimized for high accessibility and distributed manufacturing (easy to 3D print and assemble components with standard tools).

Terms of Use & License

This project is shared under the Creative Commons – Attribution – NonCommercial – ShareAlike (CC BY-NC-SA) license.


You are highly encouraged to modify, hack, and improve the design for personal or educational use, provided you give appropriate credit to My Machines and share your modifications under the same terms. Commercial production or mass distribution of this design is strictly prohibited without explicit written permission.


Thank you for supporting Maker culture and the Open Source Hardware ecosystem!
