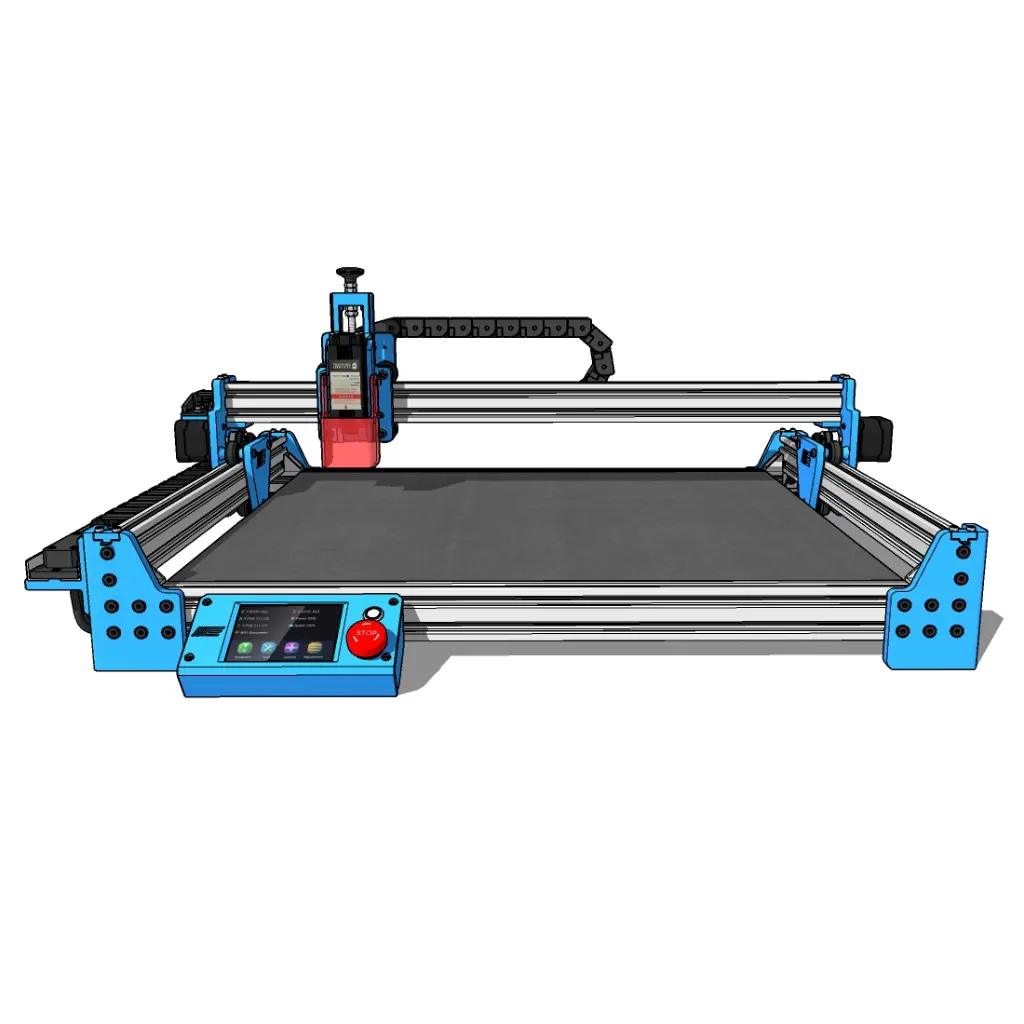

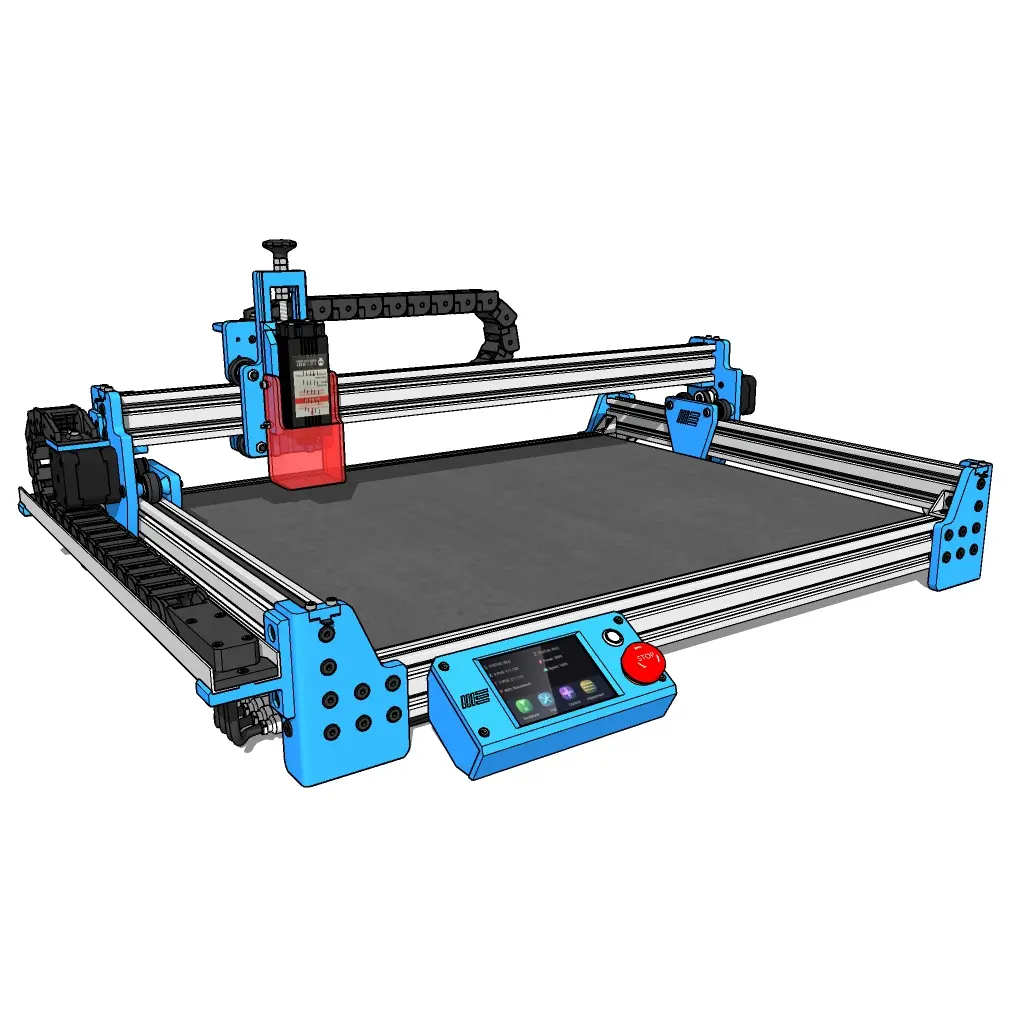

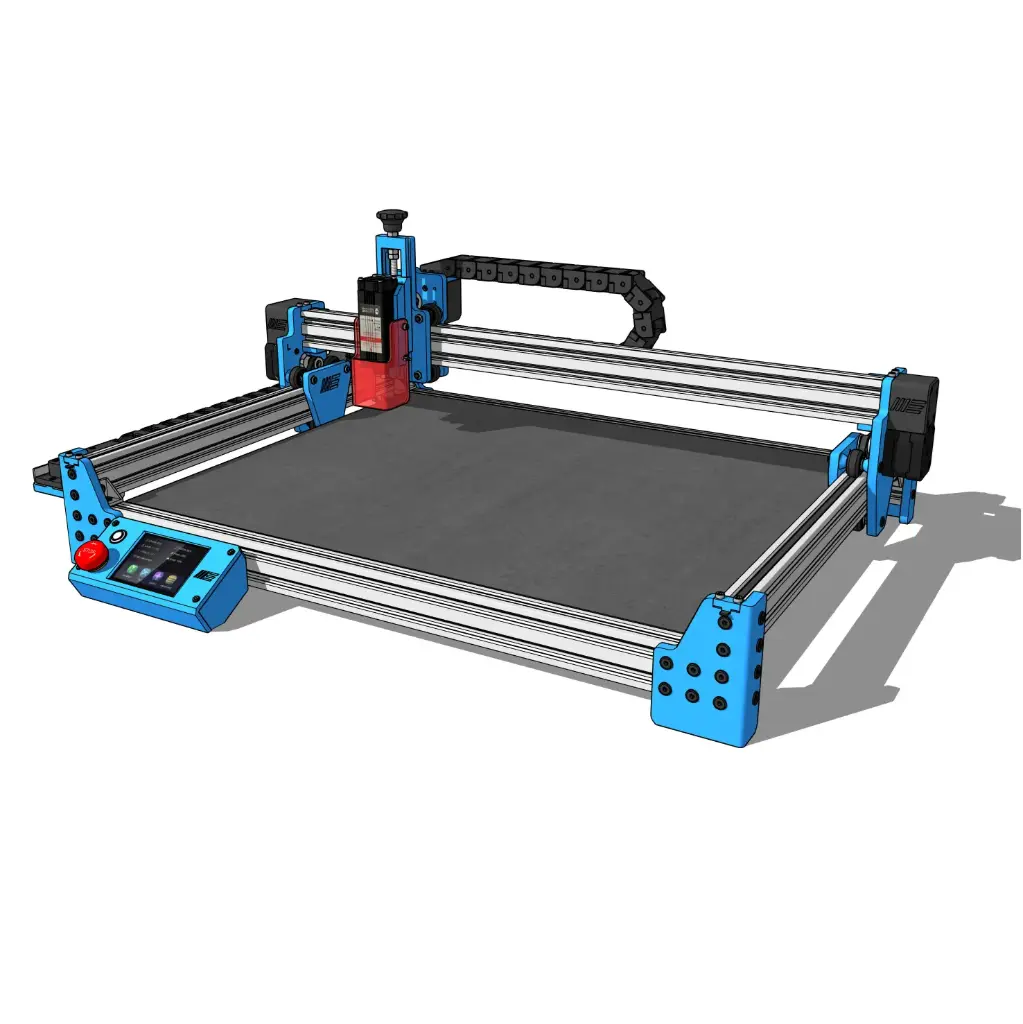

Complete CAD Project — My Diode Laser (3D CAD Files)

https://my-machines.com/web/image/product.template/552/image_1920?unique=daf5cf2
Download the official complete Sketchup 3D model and individual print-ready STL parts for the My Diode Laser CNC. Build a high-precision desktop laser engraver and cutter while directly supporting open-source hardware development at My Machines!

20.32 € 20.32 EUR 20.32 €

Not Available For Sale

Esta combinação não existe.

This content will be shared across all product pages.

Contacte-nos

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Partilhar

Desktop Precision: Bring the My Diode Laser CNC to Your Workshop


The My Diode Laser CNC was engineered to bring affordable, highly precise laser cutting and engraving capabilities to any maker's bench. Featuring a lightweight yet rigid frame structure combined with optimized belt routing, this machine minimizes moving mass on the X and Y axes. This allows for rapid acceleration and tight cornering performance, ensuring ultra-crisp engraving details and clean vector cuts.


By purchasing this project, you aren't just buying files; you are directly funding the purchase of materials, prototype testing, and the development of new open-source hardware at My Machines.

What's Included in the Download (.ZIP)?


• Master 3D Model (.SKP): The complete Sketchup 3D model, fully organized into groups and components for easy inspection of the lightweight framework, belt paths, wiring channels, and modular laser head mount.

• Individual 3D Printing Files (.STL): Every print-ready structural and mechanical component separated individually, optimized and ready to drop into your slicer.


Official Project Documentation

You can access the full technical documentation, parts list, and build logs here:

• [Click here to view the Bill of Materials (BOM)]

• [Click here to access the Assembly Manual & Setup Guide]

• [Learn more / Saber mais about the My Diode Laser CNC](https://my-machines.com/my-diode-laser-cnc)

Technical Specifications


• Framework & Kinematics: Lightweight aluminum profile architecture with high-accuracy belt-driven XY coordination, built for rapid scanning and engraving speeds.

• Modular Laser Carriage: Universal tool mount plate designed to fit standard diode laser modules with integrated cable management.

• Philosophy: 100% optimized for distributed manufacturing and maker accessibility (easy to 3D print and assemble components with standard tools).

Terms of Use & License

This project is shared under the Creative Commons – Attribution – NonCommercial – ShareAlike (CC BY-NC-SA) license.


You are highly encouraged to modify, hack, and improve the design for personal or educational use, provided you give appropriate credit to My Machines and share your modifications under the same terms. Commercial production or mass distribution of this design is strictly prohibited without explicit written permission.


Thank you for supporting Maker culture and the Open Source Hardware ecosystem! 🚀
