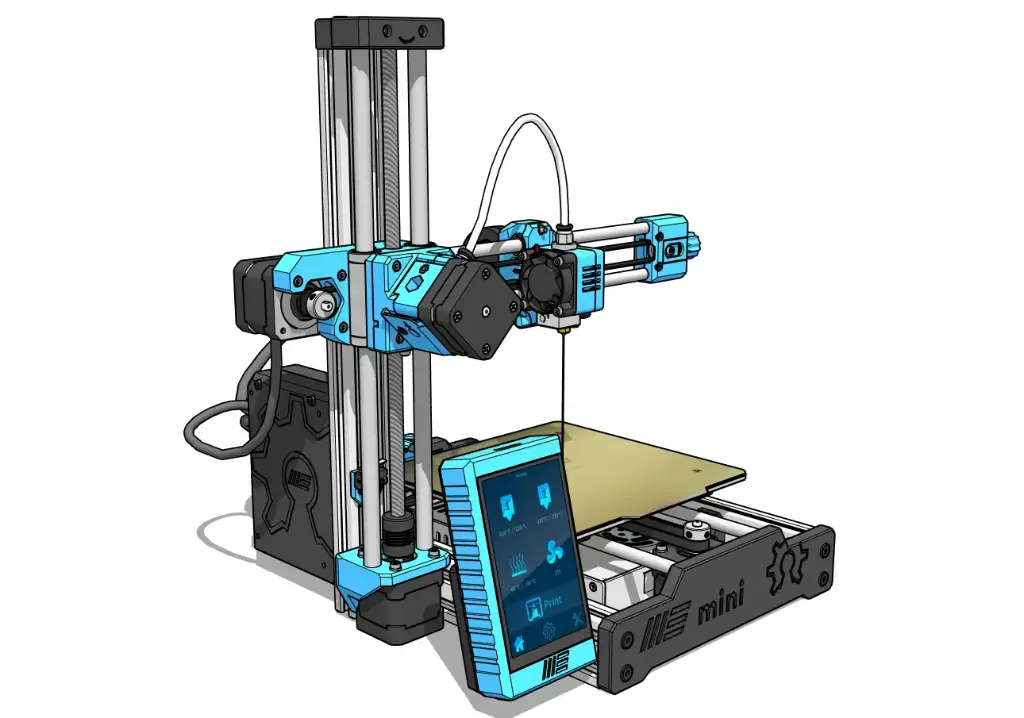

Complete CAD Project — My Mini (3D CAD Files)

https://my-machines.com/web/image/product.template/550/image_1920?unique=6690b2d
Download the official complete Sketchup 3D model and individual print-ready STL parts for the My Mini 3D Printer. Build a compact, rigid, and reliable desktop machine while directly supporting open-source hardware development at My Machines!

20.32 € 20.32 EUR 20.32 €

Not Available For Sale

Esta combinação não existe.

This content will be shared across all product pages.

Contacte-nos

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Partilhar

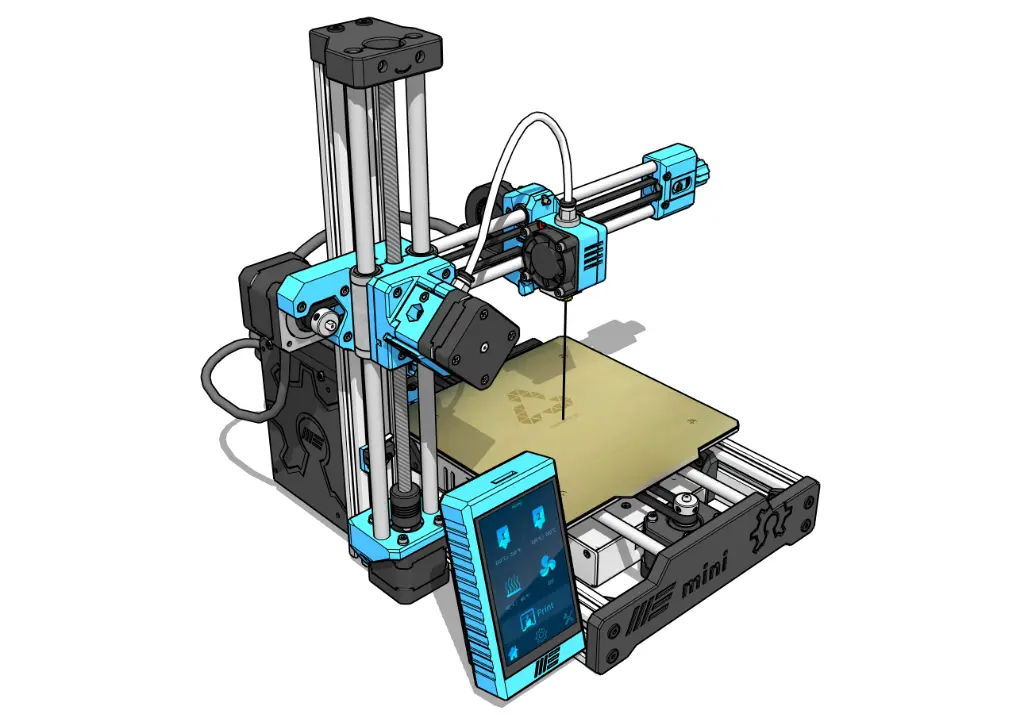

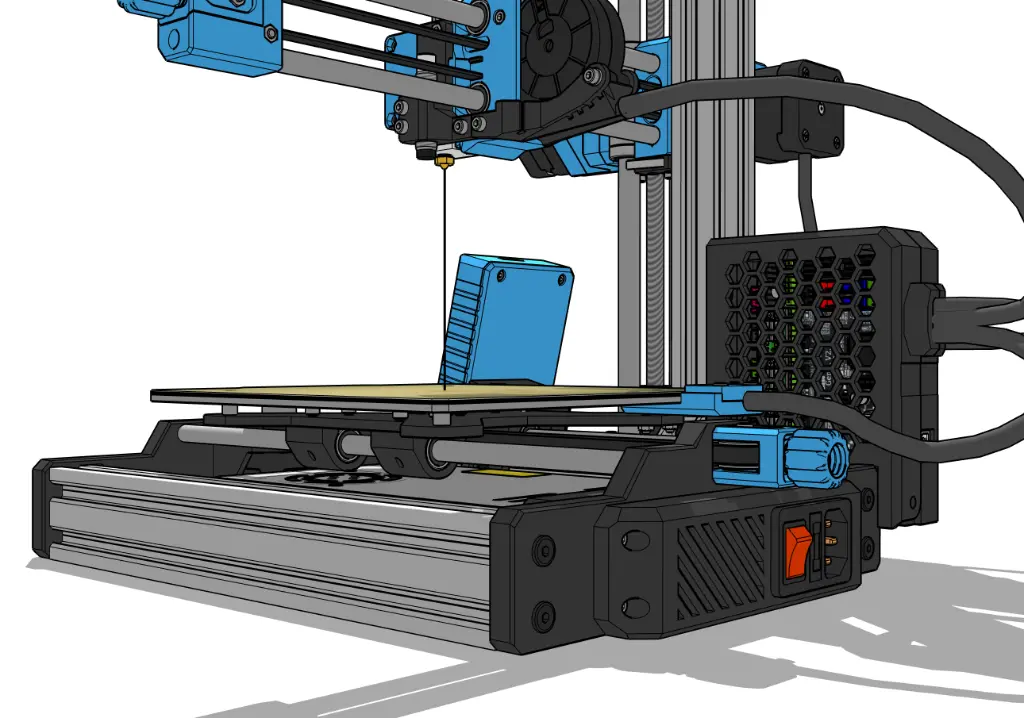

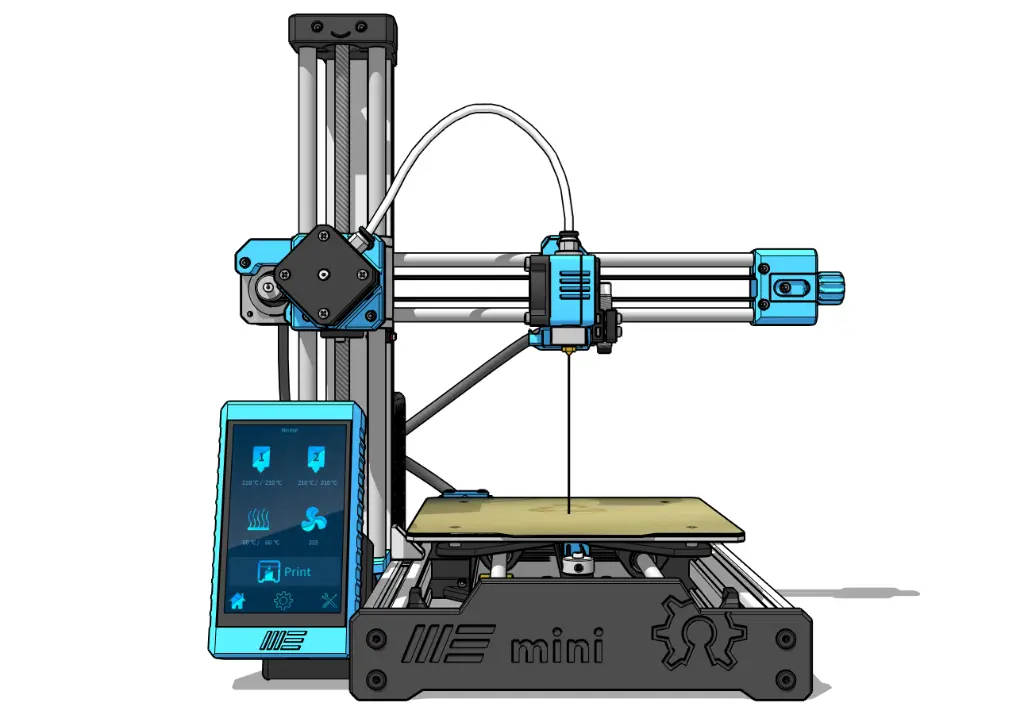

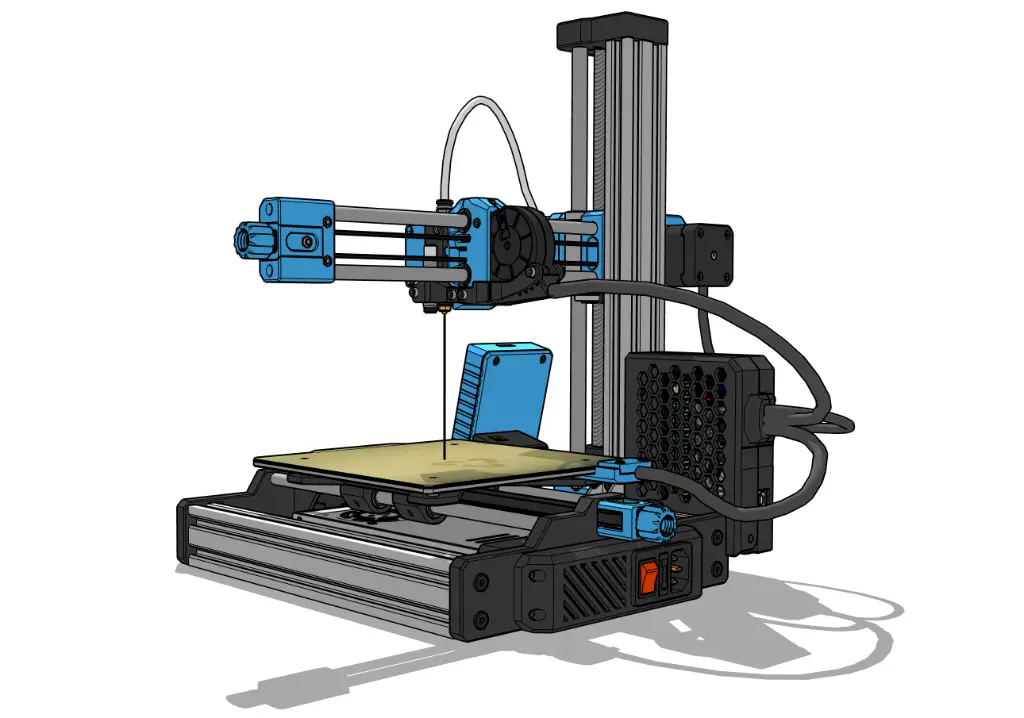

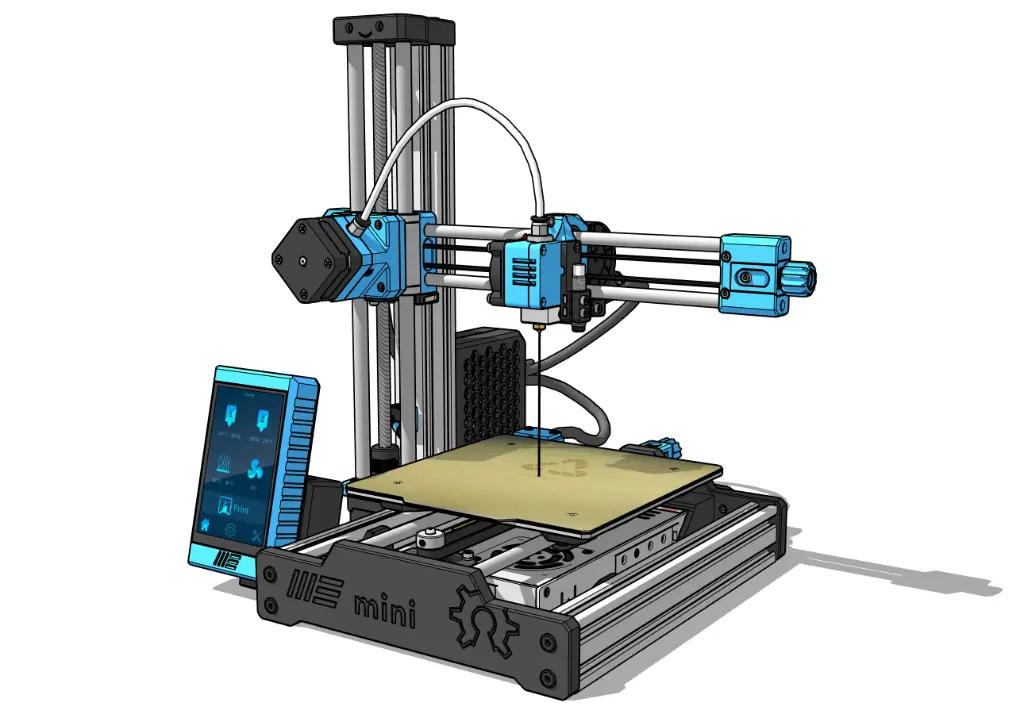

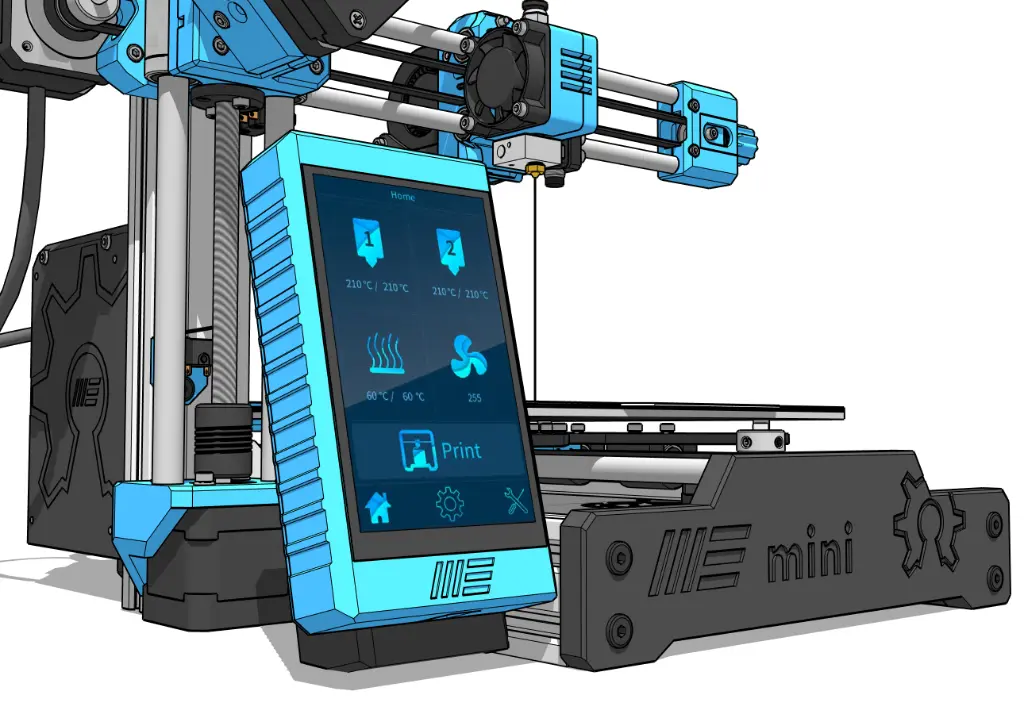

Compact Precision: Bring the My Mini 3D Printer to Your Workshop

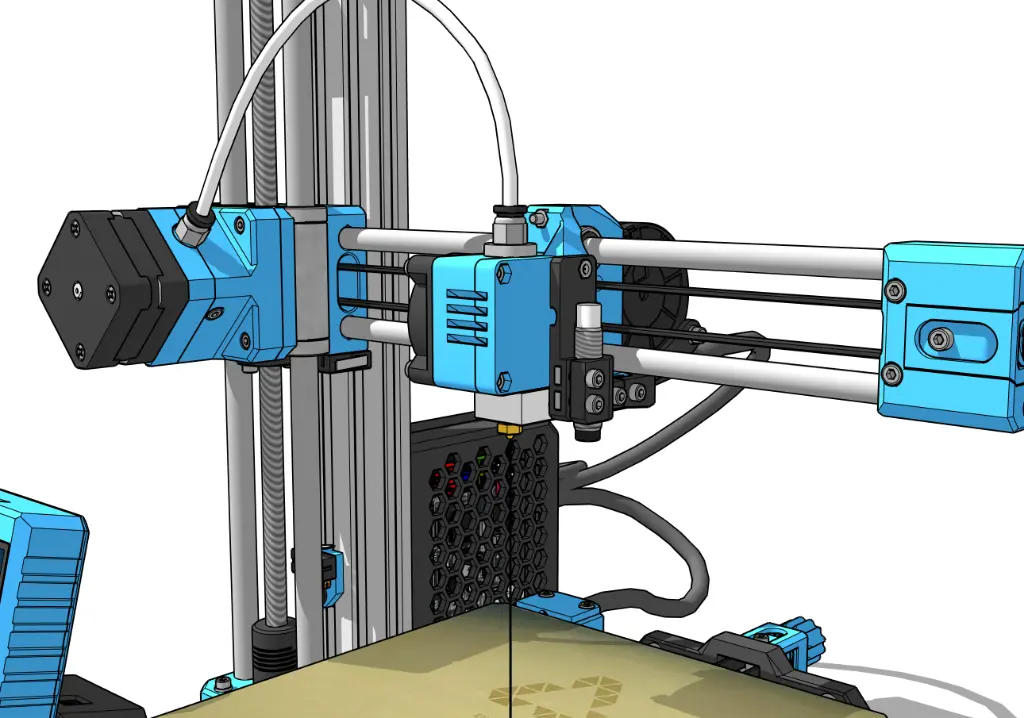

The My Mini 3D Printer was meticulously designed to deliver a compact, reliable, and accessible desktop 3D printing solution without compromising on rigidity. Featuring optimized linear coordination, upgraded 10mm Z-axis rods, and smooth LM10LUU linear bearings, this design mitigates Z-wobble and artifacts to provide exceptionally clean prints.


By purchasing this project, you aren't just buying files; you are directly funding the purchase of materials, prototype testing, and the development of new open-source hardware at My Machines.

What's Included in the Download (.ZIP)?

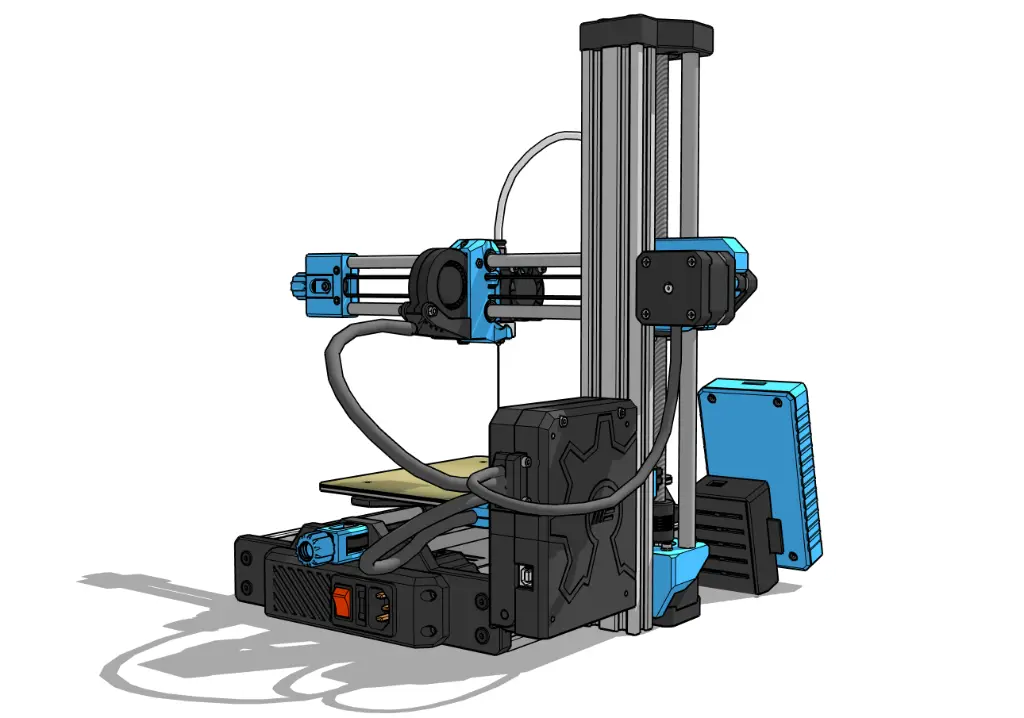

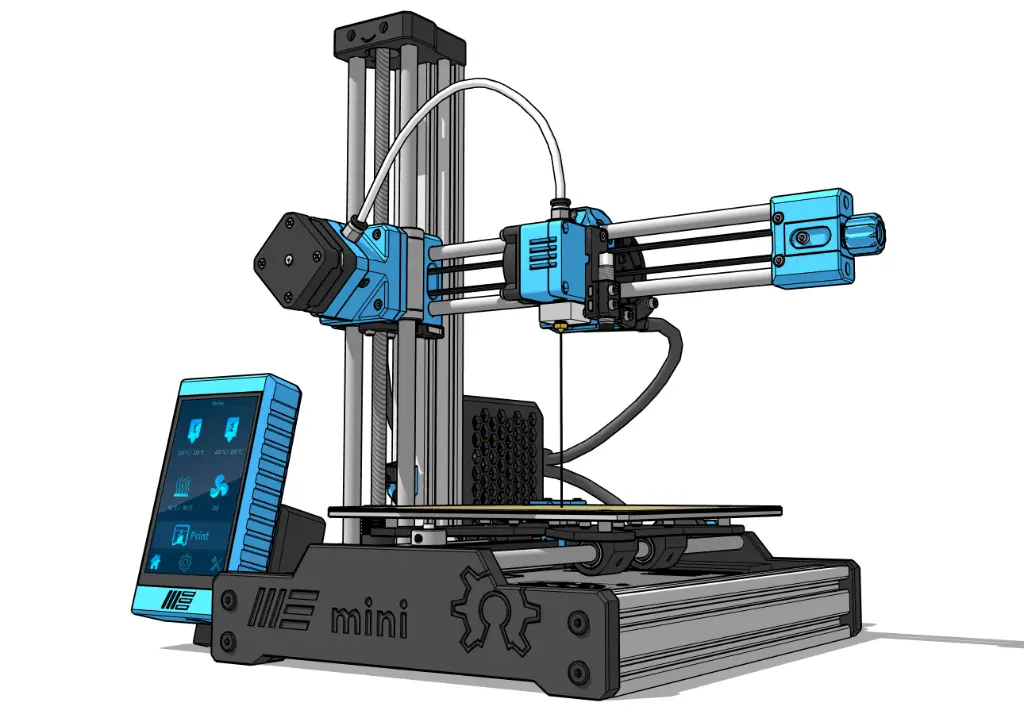

• Master 3D Model (.SKP): The complete Sketchup 3D model, fully organized into groups and components for easy inspection of the structure, mechanics, extruder carriage, and electronics layout.

• Individual 3D Printing Files (.STL): Every print-ready component separated individually, optimized and ready to import into your slicer of choice.


Official Project Documentation

You can access the full technical documentation, parts list, and build logs here:

• Click here to view the Bill of Materials (BOM)

• Click here to access the Assembly Manual & Setup Guide

• Click here to about the My Mini 3D Printer

Technical Specifications

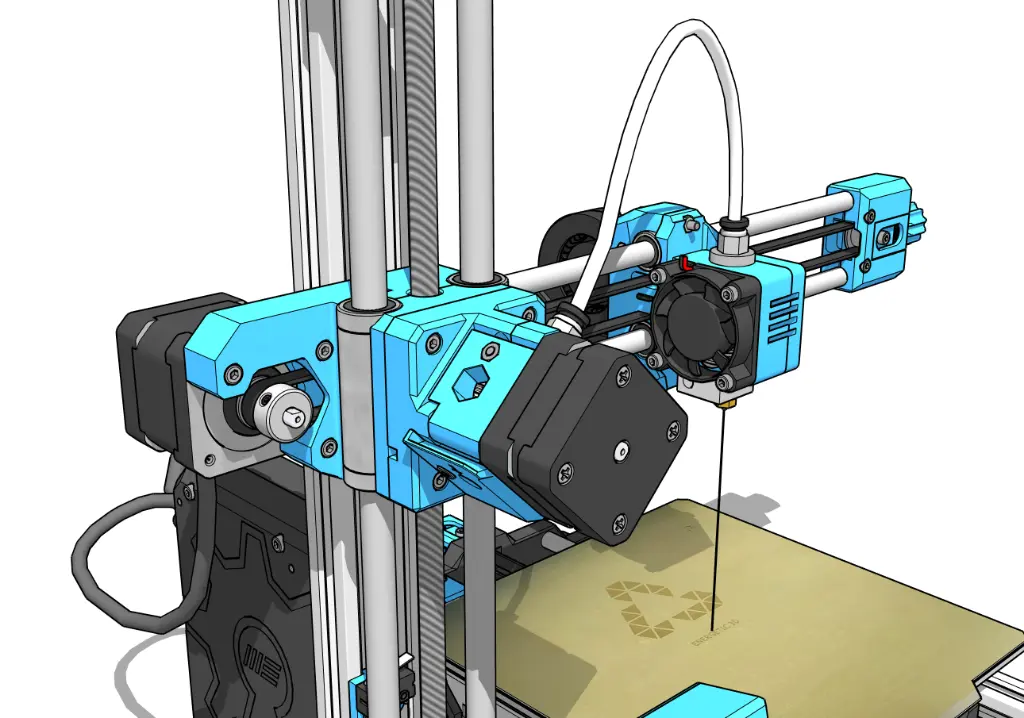

• Motion & Stability: Smooth rod mechanics with upgraded 10mm Z-axis rods and LM10LUU linear bearings for maximum stability and anti-wobble precision.

• Compact Footprint: Otimized desktop form-factor, ideal for compact printer setups or smaller workshop spaces.

• Philosophy: 100% optimized for distributed manufacturing and maker accessibility (easy to 3D print and assemble components with standard tools).

Terms of Use & License

This project is shared under the Creative Commons – Attribution – NonCommercial – ShareAlike (CC BY-NC-SA) license.


You are highly encouraged to modify, hack, and improve the design for personal or educational use, provided you give appropriate credit to My Machines and share your modifications under the same terms. Commercial production or mass distribution of this design is strictly prohibited without explicit written permission.


Thank you for supporting Maker culture and the Open Source Hardware ecosystem!.
